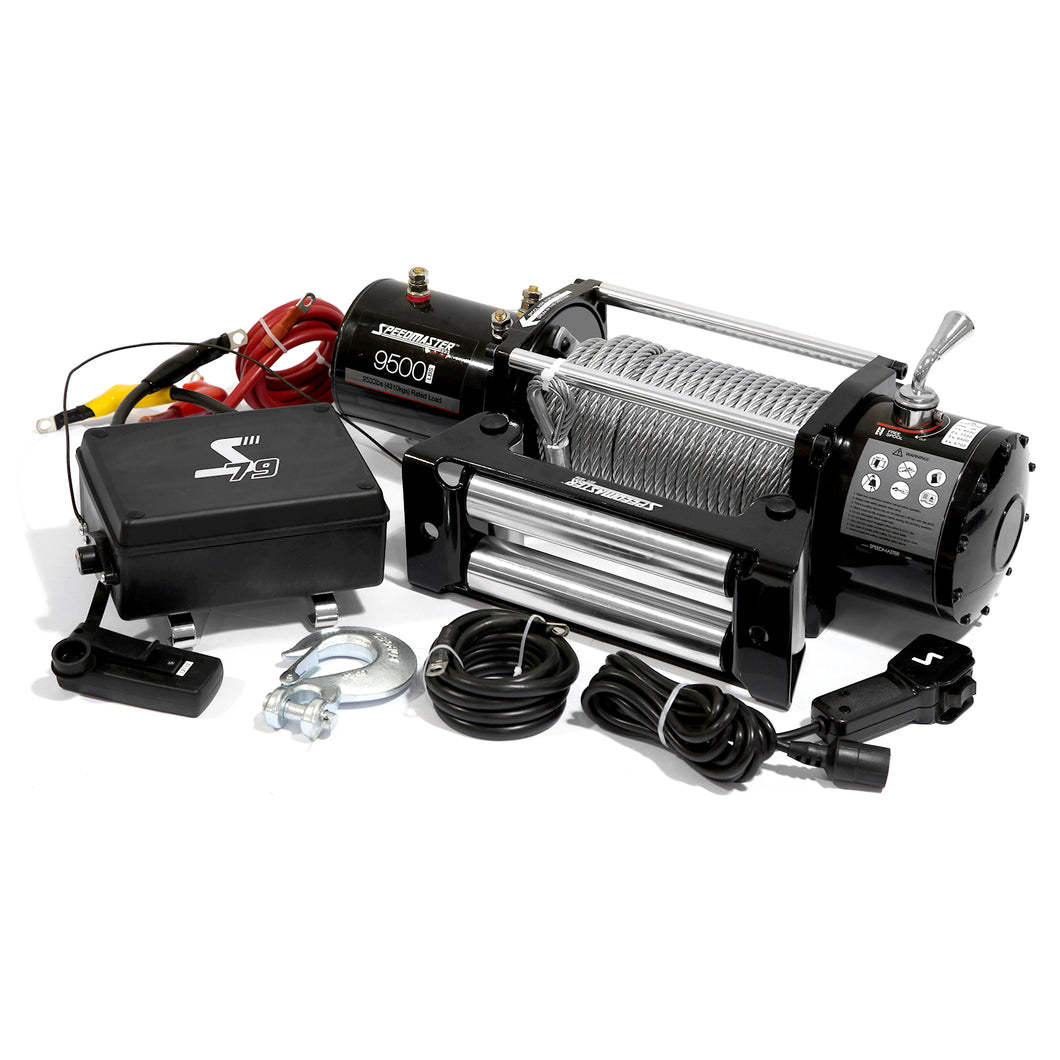

9500lbs / 4310kgs 12V Electric 4wd Winch Kit w/ Wireless Remote Control

Brand:	Speedmaster
Part Number:	PCE553.1003
Part Type:	Winch
Winch Style:	Electric
Pull Rating (lbs):	9,500 lbs. (4310kg)
Volts:	12 V
Winch Fairlead Type:	Roller
Remote Included:	Yes
Remote:	Remote switch,12ft (3.7m)lead + Wireless
Free-Spooling Clutch:	Sliding Ring Gear
Brake:	Automatic In-The-Drum
Power Out:	Yes
Drive Gear:	3-Stage Differential Planetary
Winch Line Included:	Yes
Winch Line Type:	Cable
Winch Line Diameter (in):	21/64 in. (8.3mm)
Winch Line Material:	Steel
Winch Line Length (ft):	94 ft. (28m)
Weight:	84.000 lbs. (38kg)
Motor Horsepower:	5.5 hp
Gear Reduction Ratio:	265.2:1
Drum Diameter (in):	2.500 in. (63.5mm)
Drum Length (in):	8.800 in. (224mm)
Overall Dimensions (in):	562mm(L) x 160mm(W) x 218mm(H)
Winch Finish:	Black
Recommended Battery:	650CCA min.
Quantity:	Sold as a kit.

The Speedmaster 4wd winches encompass all the best features you could want in a winch. Ranging from 9500lb - 13000lb, they can handle any situation you could get into. Every winch is finished with a black powder coat, stainless steel hardware, and aluminum crossbars to provide great looking and long lifetime. They include a wired remote switch and a wireless remote control, waterproof box with the versatility to be mounted over the winch motor or winch cable, a four-way roller fairlead and forged hook. Speedmaster winches are the complete recovery system with the muscle and reliability to bail you out of any situation. Electric winch with Permanent Magnet ModelCapacityPowerSteel cableSize (L X W X H)NW PCE553.1003 9500LB DC12V 8.3mm X 28m 562 X 160 X 218mm 38KG Pull, Speed, Amperes, Volts (First Layer) Line Pull (lbs./ kg)Line Speed FPM(m/min)Motor (Amps) 024.6ft (7.8m) 802000 (907) 14.4ft (4.4m) 180 4000 (1814) 10.6ft (3.25m) 240 6000 (2722) 8.5ft (2.6m) 280 8000 (3629) 7.0ft (2.15m) 330 9500 (4310) 6.4ft (1.95m) 380 Line Pull And Rope Capacity In Layer LayerRated Line Pull (lbs./kgs) Total Rope On Drum (ft/m )1 9500 (4300) 16.2 (5.0)2 7700 (3400) 39.0 (12.0)3 6500 (2940) 68.0 (21.0)4 5700 (2580) 92.0 (28.
