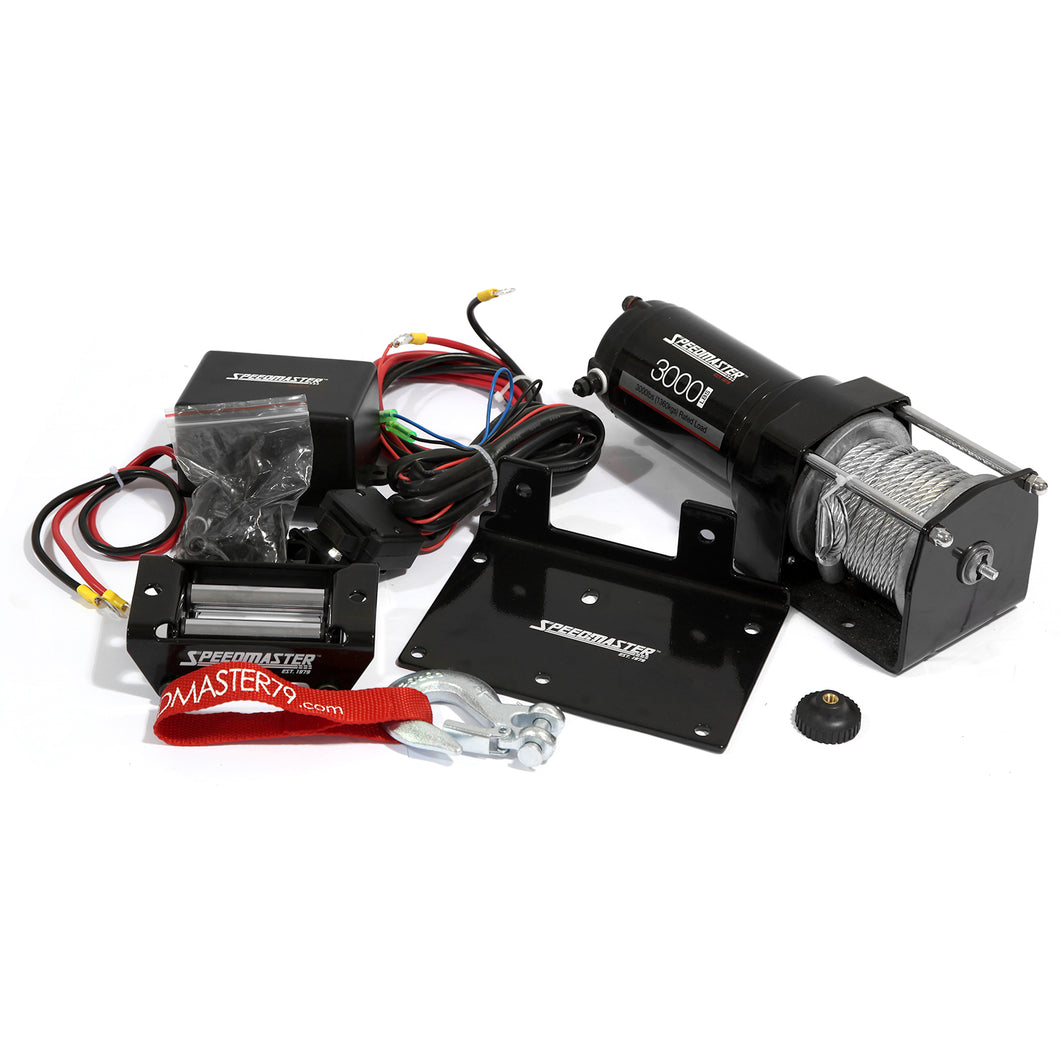

3000lbs / 1360kgs 12V Electric ATV Winch Kit w/ Remote Switch

Brand:	Speedmaster
Part Number:	PCE553.1002
Part Type:	Winch
Winch Style:	Electric
Pull Rating (lbs):	3,000 lbs. (1360kg)
Volts:	12 V
Winch Fairlead Type:	Roller
Remote Included:	Yes
Remote:	Handlebar remote switch 10ft (3m) Lead
Free-Spooling Clutch:	Pull and Turn
Brake:	Action Dynamic
Power Out:	Yes
Drive Gear:	Differential Planetary
Winch Line Included:	Yes
Winch Line Type:	Cable
Winch Line Diameter (in):	7/32 in. (5.5mm)
Winch Line Material:	Steel
Winch Line Length (ft):	30 ft. (9.2m)
Weight:	14.300 lbs. (6.5kg)
Motor Horsepower:	1.20 hp
Gear Reduction Ratio:	153:1
Drum Diameter (in):	1.250 in. (31.75mm)
Drum Length (in):	2.900 in. (74mm)
Overall Dimensions (in):	300mm(L) x 110mm(W) x 105mm(H)
Winch Finish:	Black
Recommended Battery:	175CCA min.
Quantity:	Sold as a kit.

The highest performance and reliability; Speedmaster ATV winches make them a perfect match for the serious off-roader. All winches deliver superior duty cycles with improved motor life. When you are in the middle of nowhere and stuck knee-deep in mud, you need a winch that you can rely on. The Speedmaster ATV winch provides unrivaled performance and reliable pulling power to get the job done with ease. Electric winch with Permanent Magnet ModelCapacityPowerSteel cableSize (L X W X H)NW PCE553.1002 3000LB DC12V 5.5mm X 9.2m 300 X 110 X 105mm 6.5KG Pull, Speed, Amperes, Volts (First Layer) Line Pull (lbs./ kg)Line Speed FPM(m/min)Motor (Amps)010.8ft (3.3m)121,000 (454)8.2ft (2.5m)602,000 (907)3.6ft (1.1m)100 3,000 (1361) 2.6ft (0.8m)130 Line Pull And Rope Capacity In Layer LayerRated Line Pull (lbs./kgs) Total Rope On Drum (ft/m )1 3000 (1361) 4.9 (1.5)2 2320 (1052) 11.5 (3.5)3 1890 (858) 19.3 (5.9)4 1590 (720) 28.5 (8.7)5 1380 (620) 30.0 (9.
