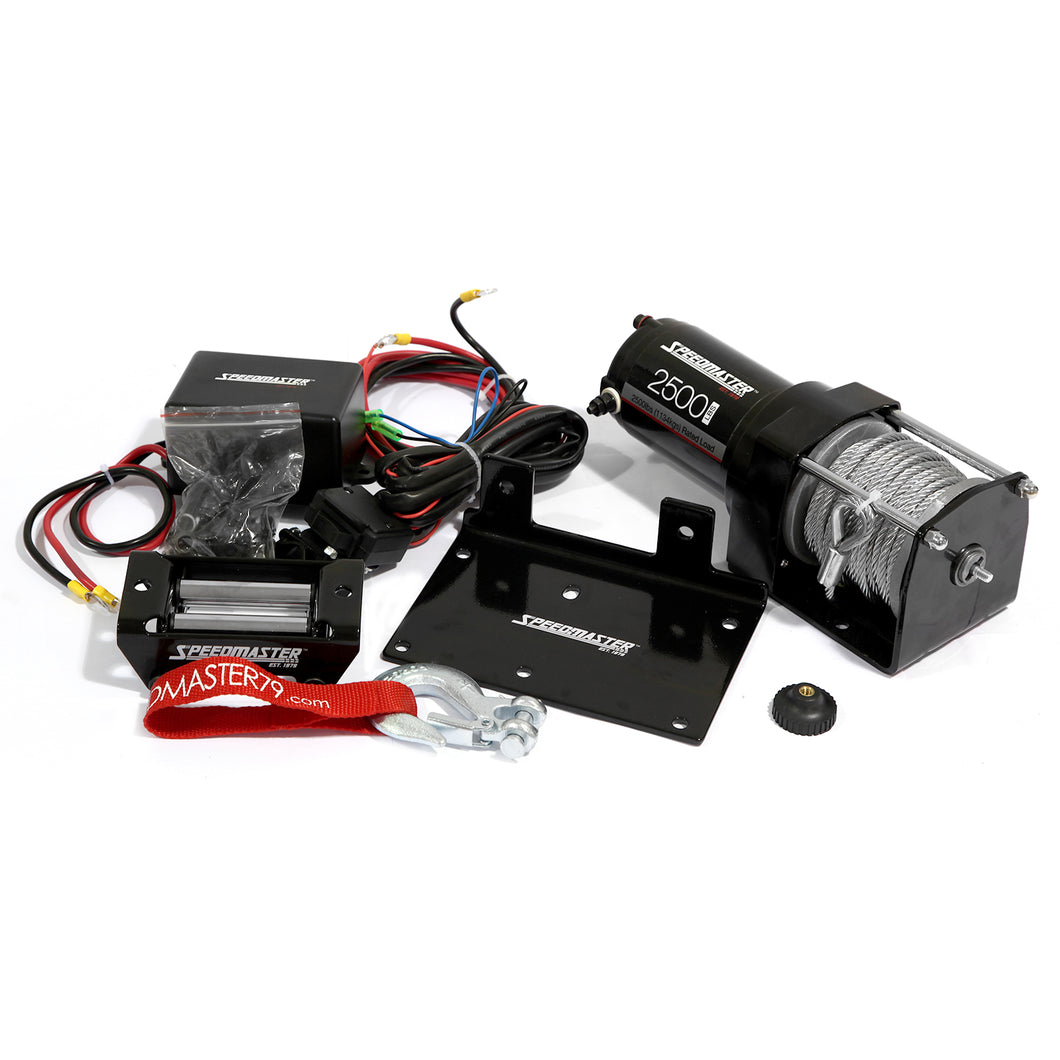

2500lbs / 1130kgs 12V Electric ATV Winch Kit w/ Remote Switch

Brand:	Speedmaster
Part Number:	PCE553.1001
Part Type:	Winch
Winch Style:	Electric
Pull Rating (lbs):	2,500 lbs. (1130kg)
Volts:	12 V
Winch Fairlead Type:	Roller
Remote Included:	Yes
Remote:	Handlebar remote switch 10ft (3m) Lead
Free-Spooling Clutch:	Pull and Turn
Brake:	Action Dynamic
Power Out:	Yes
Drive Gear:	Differential Planetary
Winch Line Included:	Yes
Winch Line Type:	Cable
Winch Line Diameter (in):	3/16 in. (4.8mm)
Winch Line Material:	Steel
Winch Line Length (ft):	40 ft. (12.2m)
Weight:	13.500 lbs. (6kg)
Motor Horsepower:	1.20 hp
Gear Reduction Ratio:	153:1
Drum Diameter (in):	1.250 in. (31.75mm)
Drum Length (in):	2.900 in. (74mm)
Overall Dimensions (in):	300mm(L) x 110mm(W) x 105mm(H)
Winch Finish:	Black
Recommended Battery:	175CCA min.
Quantity:	Sold as a kit.

The highest performance and reliability; Speedmaster ATV winches make them a perfect match for the serious off-roader. All winches deliver superior duty cycles with improved motor life. When you are in the middle of nowhere and stuck knee-deep in mud, you need a winch that you can rely on. The Speedmaster ATV winch provides unrivaled performance and reliable pulling power to get the job done with ease.Electric winch with Permanent MagnetModelCapacityPowerSteel cableSize (L X W X H)NWPCE553.10012500LBDC12V4.8mm X 12.2m300 X 110 X 105mm6KG Pull, Speed, Amperes, Volts (First Layer)Line Pull (lbs./ kg)Line Speed FPM(m/min)Motor (Amps)010.8ft (3.3m)121,000 (454)8.2ft (2.5m)602,000 (907)3.6ft (1.1m)1002,500 (1134)2.6ft (0.8m)120 Line Pull And Rope Capacity In LayerLayerRated Line Pull (lbs./kgs)Total Rope On Drum (ft/m )12500 (1134)5.6 (1.7)21985 (900)12.4 (3.8)31650 (748)21.0 (6.4)41410 (639)31.0 (9.5)51230 (558)40.0 (12.
