![Ford 4 Speed Wide Ratio Aluminum Race Series Toploader Gearbox Transmission [Long]](http://musclecarhq.com.au/cdn/shop/files/PCE646.1001_C_{width}x.jpg?v=1755584310)

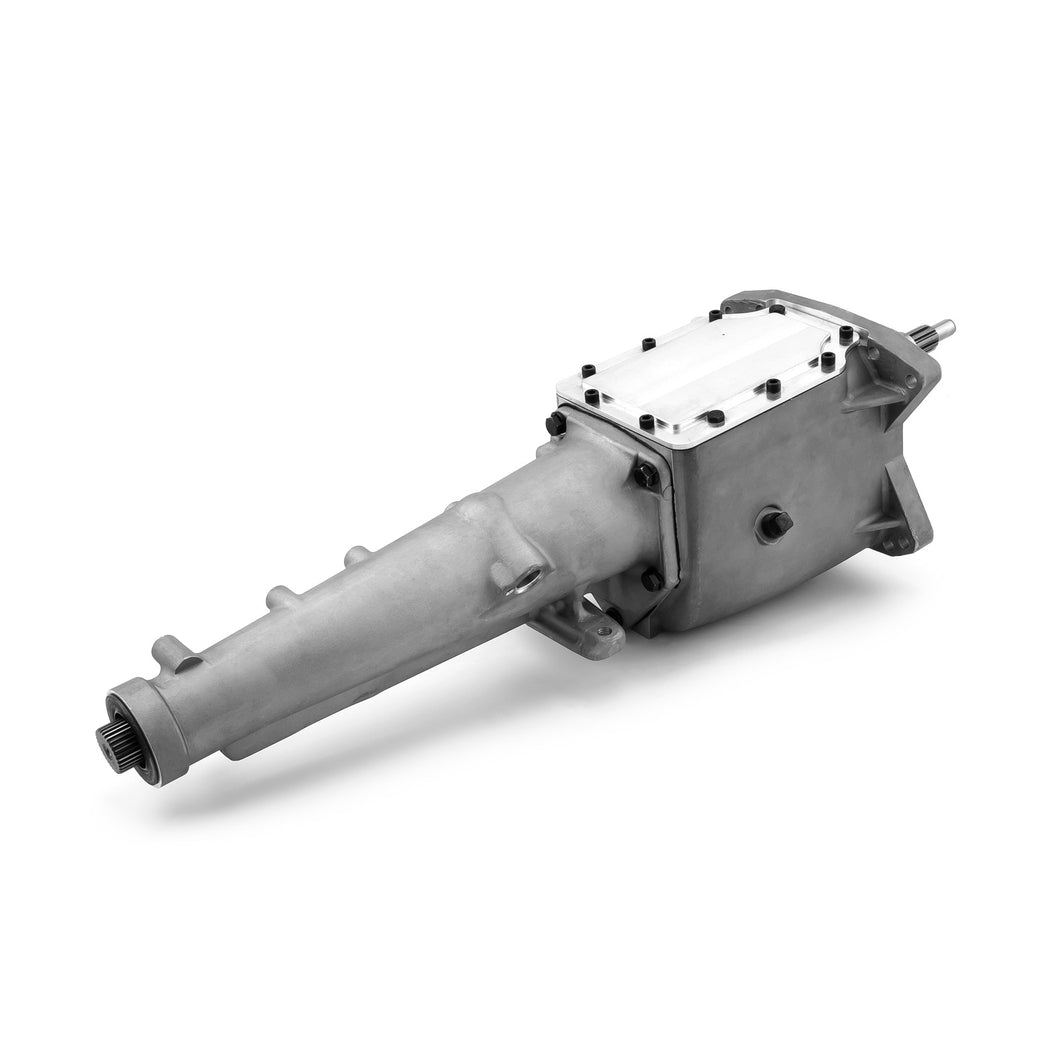

![Ford 4 Speed Wide Ratio Aluminum Race Series Toploader Gearbox Transmission [Long]](http://musclecarhq.com.au/cdn/shop/files/PCE646.1001_C_530x@2x.jpg?v=1755584310)
| Brand: | Speedmaster |
| Part Number: | PCE646.1001.01 |
| Part Type: | Manual Transmissions |
| Number of Gears: | 4 |
| Gear Ratio: | Wide |
| Input Shaft Diameter: | 1.0625 in. |
| Input Spline Quantity: | 10 |
| Output Shaft Spline Quantity: | 31 |
| Output Shaft Spline Diameter (in): | 1.360 in. |
| Tailshaft Length (in): | 17.000 in. |
| Bellhousing Included: | No |
| Yoke Style: | Slip-on |
| Yoke Included: | No |
| Shifter Included: | No |
| Shifter Style Required: | Long |
| First Gear Ratio: | 1:2.78 |
| Second Gear Ratio: | 1:1.92 |
| Third Gear Ratio: | 1:1.35 |
| Fourth Gear Ratio: | 1:1.00 |
| Case Material: | Aluminum |
| Quantity: | Sold Individually |
| Notes: | Assembled and Tested in USA. Application: 1970-1972 Ford Falcon GTHO |
