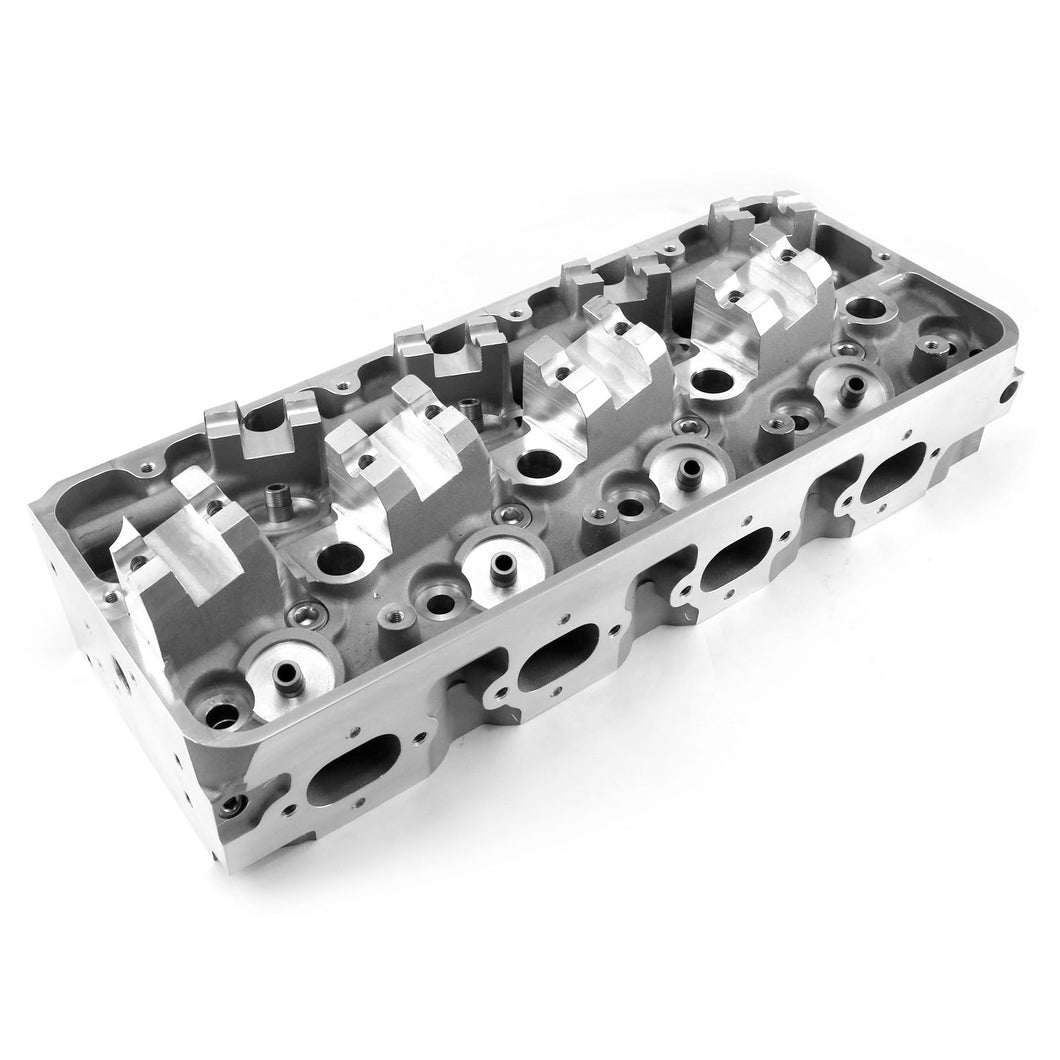

Ford 429 460 Boss 309cc 85cc Semi Hemispherical Aluminum Bare Cylinder Head

Ford 429 460 Boss 309cc 85cc Semi Hemispherical Aluminum Bare Cylinder Head

SKU: PCE281.1778
Vendor
Speedmaster
Regular price
$1,192.49
Sale price
$1,192.49
Regular price
$2,376.00
Sold out
Unit price
per
Tax included.

Brand: Speedmaster
Part Number: PCE281.1778
Part Type: Cylinder Head [Bare]


Cylinder Head Style: Bare
Cylinder Head Material: Aluminum
Cylinder Head Finish: Natural
Combustion Chamber Volume (cc): 85 cc
CNC-Machined Combustion Chamber: Yes
Intake Runner Volume (cc): 309 cc
Exhaust Runner Volume (cc): 123 cc
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Intake Port Shape: Round
Intake Port Location: Standard
Exhaust Port Shape: Oval
Exhaust Port Location: Standard
Spark Plug Style: Standard
Comp. Valve Job: No
Intake Valves Included: No
Intake Valve Diameter (in): 2.300 in.
Exhaust Valves Included: No
Exhaust Valve Diameter (in): 1.900 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Perimeter Bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: Standard
Exhaust Valve Angle: Standard
Valve Guides Included: Yes
Valve Guide Material: Steel
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-angle
Valve Seat Material: Ductile iron
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: Yes
Quantity: Sold individually.
Notes: Rocker pedestals are built into heads.
Speedmaster performance aluminum cylinder heads are also available for the Big Block Ford enthusiasts. With bigger displacement engines becoming more common, the need for more airflow is necessary. If you are looking to build a 400-700 horsepower engine then you should consider Speedmaster Aluminum cylinder heads. Like the rest of our performance heads we use our -Gravity Die Cast- process. This casting process creates a much more uniform and robust cylinder head. They also offer a smaller cross section to increase the incoming air's velocity resulting in improved drivability, power and economy. We have them available in as cast for the mild street applications and in Fully CNC machined for the serious enthusiast. Speedmaster CNC ported cylinder heads are machined on a dedicated 5 axis CNC machining centers to ensure accuracy and cost effectiveness. Combustion chamber, exhaust and intake ports are fully CNC machined for better flow. CNC combustion chambers offer superior control over flame travel and quench area. CNC ported heads eliminate human error and variation from port to port. INTAKE / EXHAUST GASKETS Our Boss 429 Ford cylinder heads are designed to use stock specification intake and exhuast gaskets. For intake gaskets we reccomend Speedmaster PCE349.1028 HEAD GASKETS These heads use the same head gaskets as a stock Boss 429 Ford Engine. Because we do not currently make our own head gaskets for this family of engines (385 series), we recommend that you use Fel-Pro pn# 1018 on engines under 4.500" bore. Check back often as we are currently developing a MLS head gasket to meet the needs of serious Ford performance junkies. HEAD BOLTS / STUDS As you are probably aware, the factory head bolts are 9 / 16" diameter on BBF engines. The torque value on 9 / 16" head bolts or head studs is 145lbs with high pressure moly lube. Start with 70lbs and tighten the head down in 25lb increments until you reach 145lbs. The part number for the Ford 460 Speedmaster Head Stud Kit is PCE279.1015. Fel-Pro makes both head bolt kits and head studkits, their part number for the head bolt kit is 155 - 4203 and the stud kit is 255 - 3701 SPARKPLUGS Our Big Block Ford cylinder heads require the use of a 14mm thread 5 / 8" hex, .750" reach spark plugs. Below you will find a list of some plugs that fit and work with our heads: NGK - BCPR6ES, R5671A-7, R5671A-8 Autolite - 3923, 3924, AR3933, AR3934 Champion - RC12YC, RC10YC4, RC9YC3 Remember that you need a COLDER plug when you make more power. i.e N2O, turbo and supercharging.
