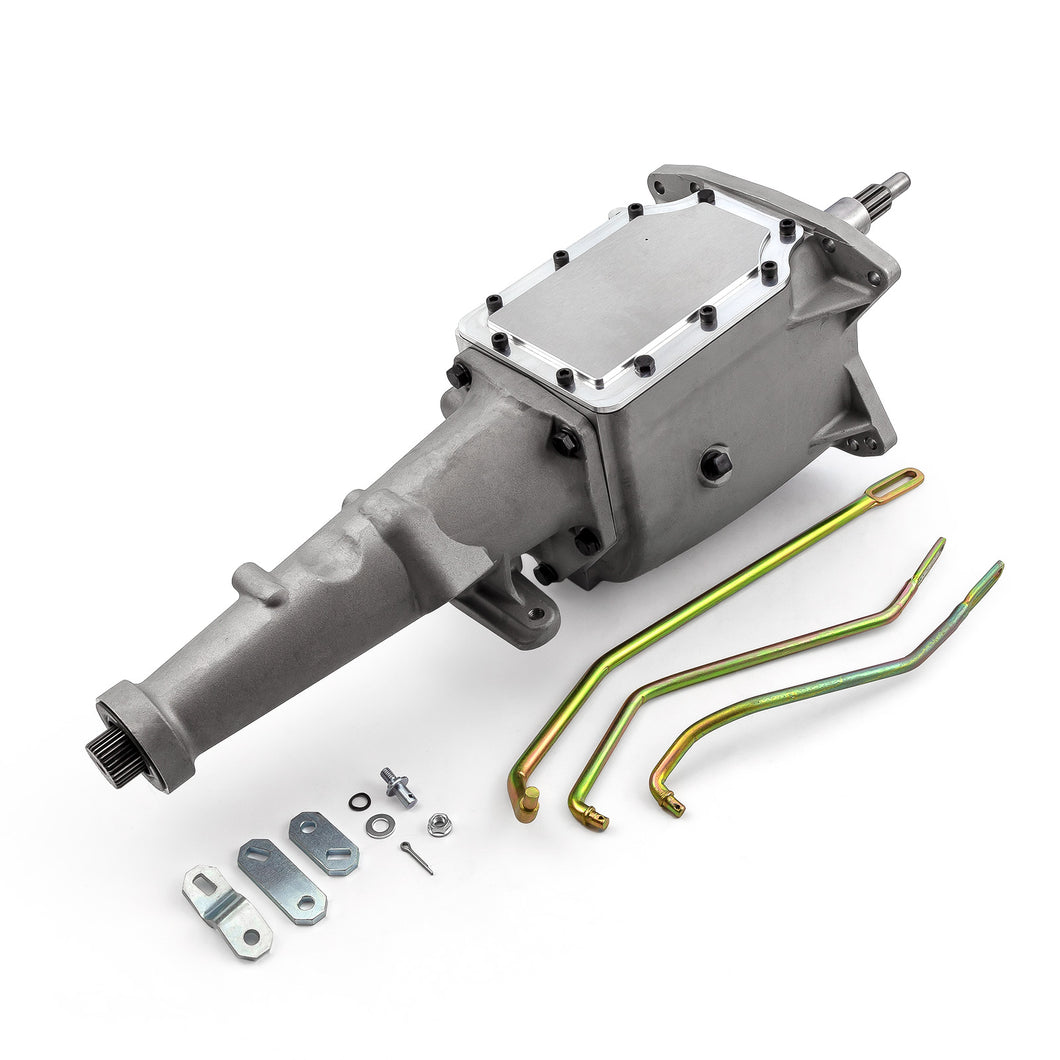

![Ford 4 Speed Wide Ratio Aluminum Toploader Gearbox Transmission [Short]](http://musclecarhq.com.au/cdn/shop/files/PCE646.1002_b207154b-18b1-4df8-832f-0ddad293044b_{width}x.jpg?v=1754497244)
![Ford 4 Speed Wide Ratio Aluminum Toploader Gearbox Transmission [Short]](http://musclecarhq.com.au/cdn/shop/files/PCE646.1002_b207154b-18b1-4df8-832f-0ddad293044b_530x@2x.jpg?v=1754497244)
| Brand: | Speedmaster |
| Part Number: | PCE646.1002 |
| Part Type: | Manual Transmissions |
| Number of Gears: | 4 |
| Gear Ratio: | Wide |
| Input Shaft Diameter (in.): | 1.0625 in |
| Input Spline Quantity: | 10 |
| Output Shaft Spline Quantity: | 31 |
| Output Shaft Spline Diameter (in): | 1.360 in. |
| Tailshaft Length: | Short |
| Bellhousing Included: | No |
| Yoke Style: | Slip-on |
| Yoke Included: | No |
| Shifter Included: | No |
| Shifter Style Required: | Long |
| First Gear Ratio: | 1:2.78 |
| Second Gear Ratio: | 1:1.92 |
| Third Gear Ratio: | 1:1.35 |
| Fourth Gear Ratio: | 1:1.00 |
| Case Material: | Aluminum |
| Quantity: | Sold Individually. |
