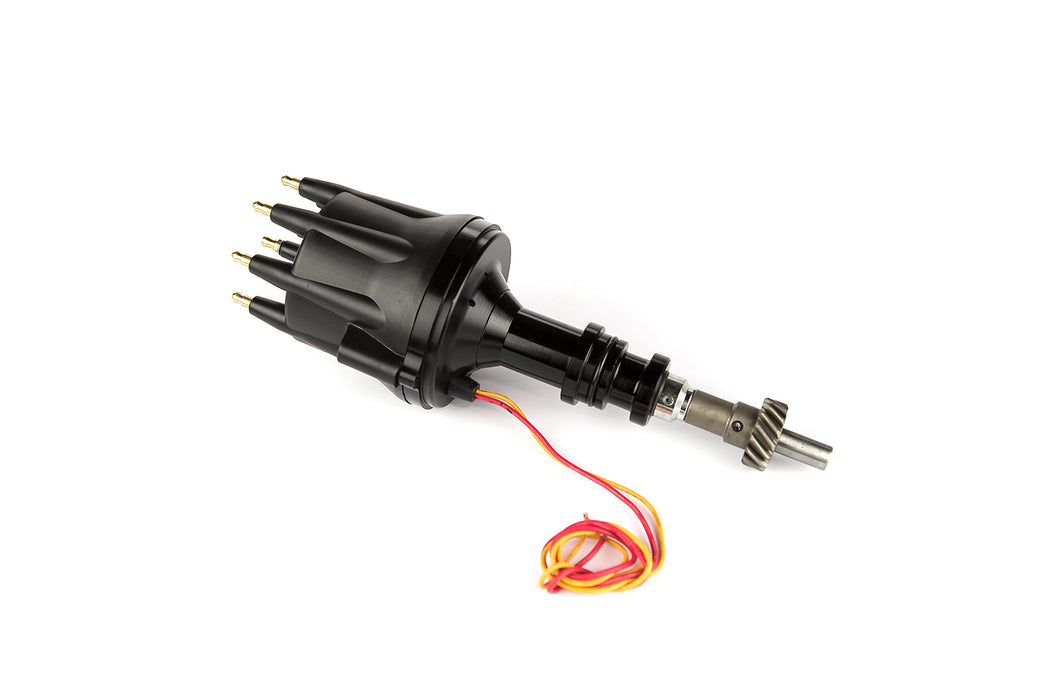

Ford 302 351C Cleveland Early 460 8000 Series Pro Billet Distributor [Black]

Brand:	Speedmaster
Part Number:	PCE376.1107.03
Part Type:	Distributor
Computer-Controlled Compatible:	No
Trigger Style:	Magnetic
Advance Type:	Mechanical
Cap Style:	Male/HEI
Mechanical Tach Drive:	No
Slip Collar:	No
Gear Material:	Hardened Steel
Ignition Box Required:	Yes
Distributor Gear Rotation:	Standard
Distributor Cap Color:	Black
Housing Material:	Billet aluminum
Housing Finish:	Black
Marine Use:	No
Quantity:	Sold individually.
Notes:	Distributor requires ignition box to run.

Speedmaster 8000 Series billet distributors are designed for the enthusiast that is serious about performance but needs the small cap size due to space considerations when installed. They are CNC machined from billet 6061-T6 aluminum. Features accurate magnetic pickup that never requires adjustment along with an easy-to-adjust mechanical advance mechanism. Speedmaster 8000 distributors yield stable timing and spark delivery at any RPM. Billet Housing:Speedmaster Pro Billet Serier feature a distributor housing machined from billet aluminum. Speedmaster uses Computerised Numerical Controlled (CNC) mills and lathes to create each housing. This procedure produces a flawless, lightweight distributor housing that is accurate to within 0.001''. Shaft and Ball Bearing Guide: The complete line of Speedmaster Distributors uses a polished steel shaft that receives a QPQ, or Tuftride coating. This process produces a durable finish that reduces friction and resists corrosion. To accurately guide this shaft, Speedmaster uses a sealed ball bearing located at the top of the housing. At the bottom of the housing, an extra long sintered bushing controls the shaft. This combination keeps the shaft spinning smooth and accurately throughout 10,000+ rpm.Magnetic Pickup: These Speedmaster distributors use a high output magnetic pickup to trigger the ignition system. This pickup is completely maintenance free requiring no adjustment ever. The pickup is mounted to the base of the distributor housing and plugs directly into your Ignition Control. A trigger signal is created as a precision made reluctor (attached to the shaft) passes by. The reluctor has a ''paddle'' for each cylinder and when the paddle passes the pickup, a signal is created.Adjustable Mechanical Advance: One of the most important features of the Speedmaster distributors is the adjustable mechanical advance assembly. The advance assembly allows you to accurately modify the advance curve to match your specific application. To start with, the advance plate is stamped and machined from chrome moly, weight pins are then staked in and tig welded in place. This assembly, along with the weights, then receive a corrosion resistant QPQ coating.
