| Brand: | Speedmaster |
| Part Number: | PCE276.1094 |

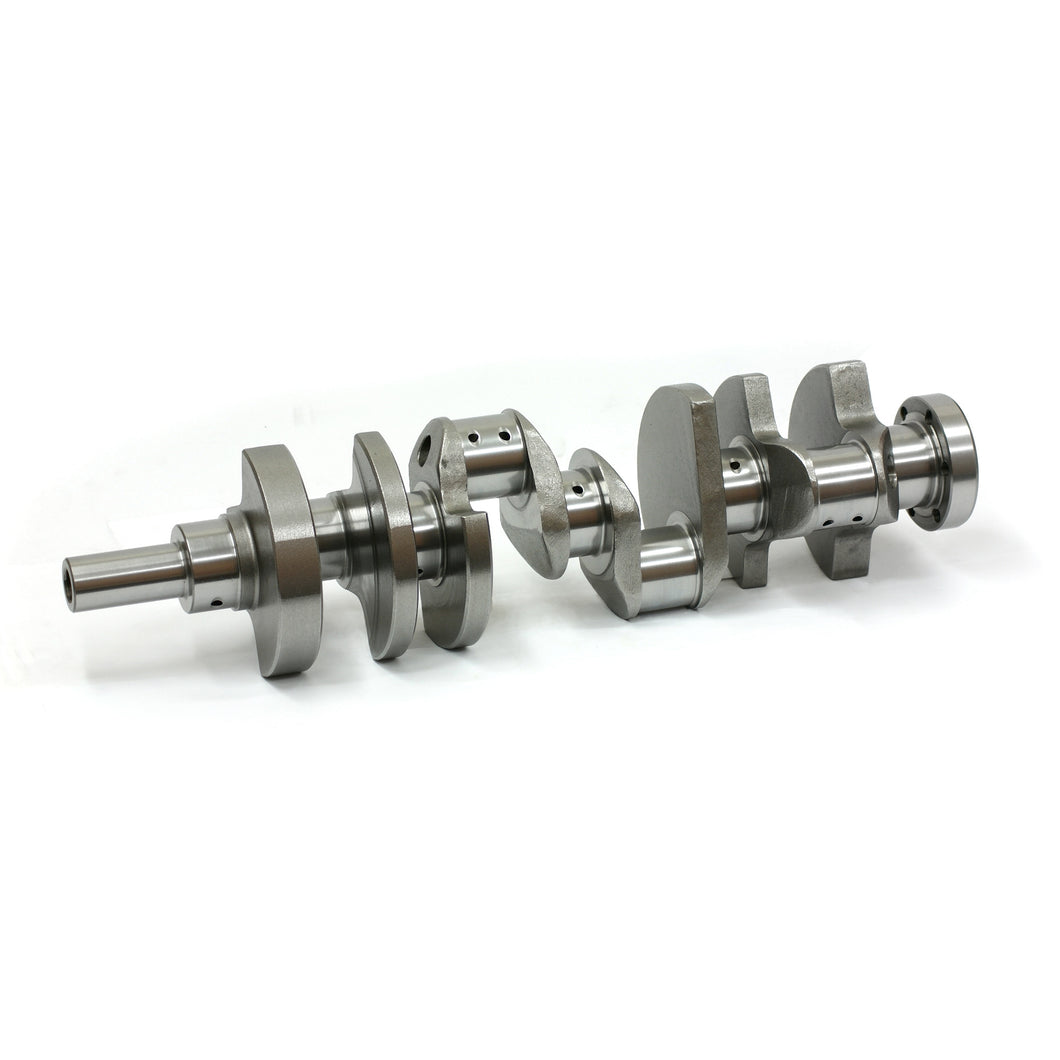

| Part Type: | Crankshaft |
| Product Line: | Cast Nodular Iron |
| æ | æ |
| Rear Main Seal Style: | Standard |
| Engine Stroke (in): | 3.400 in. |
| Crankshaft Material: | Cast steel |
| Engine Balance: | 28/50 oz. External |
| Lightened: | No |
| Requires Narrow Bearings: | See notes below |
| Rod Bearings Included: | No |
| Main Bearings Included: | No |
| Rod Journal Diameter (in): | 2.123 in. |
| Main Journal Diameter (in): | 2.2486 in. |
| Minimun Rod Length (in): | 5.400 in. |
| Balancer Bolt Thread Size: | Standard |
| Crankshaft Snout Style: | Standard |
| Quantity: | Sold individually. |
| Notes: | Check the bearing to crank radius clearance. Rod bearings may need to be chamfered or alternatively use narrow rod bearings. |
| Tool: | Stroker Combinations |
