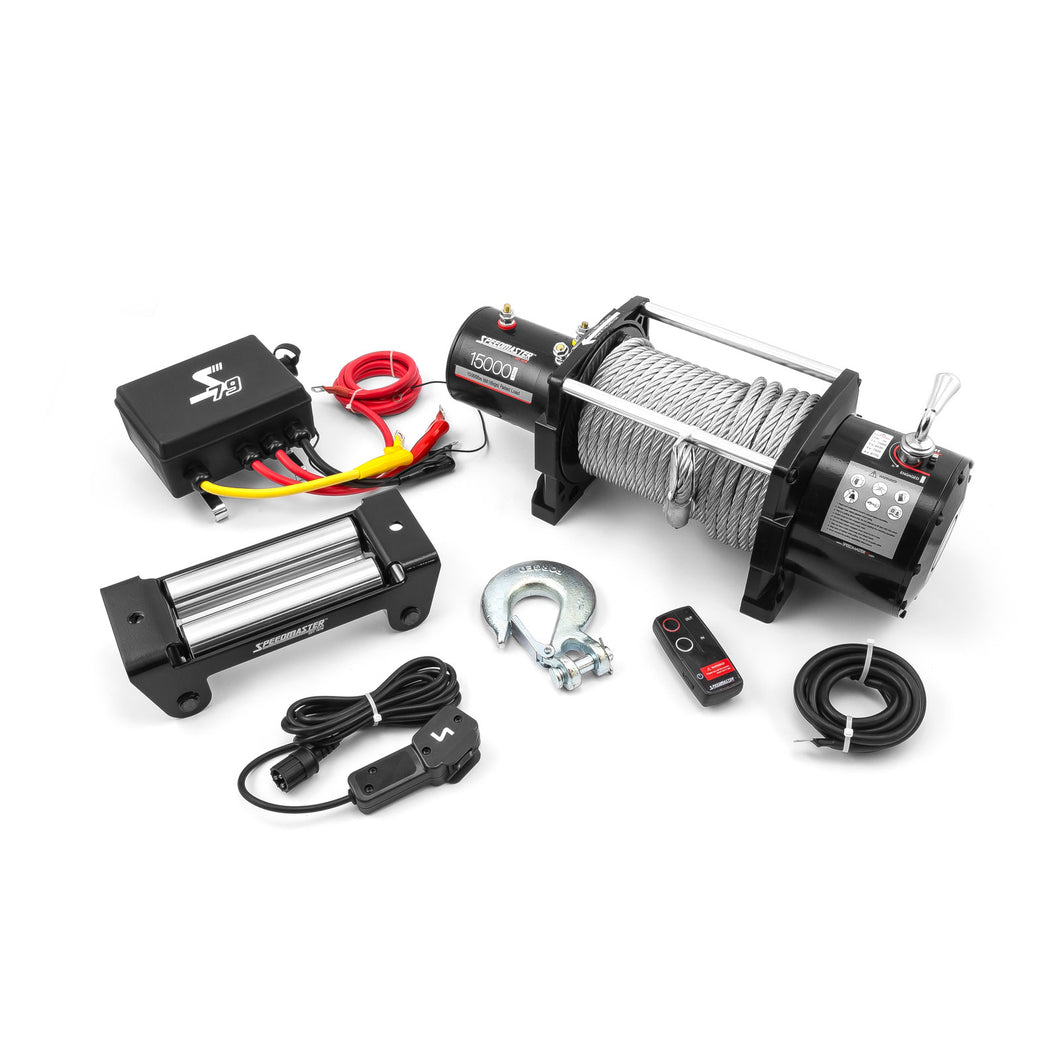

15000lbs / 6803kgs 12V Electric 4wd Winch Kit w/ Wireless Remote Control

Brand:	Speedmaster
Part Number:	PCE553.1006
Part Type:	Winch
Winch Style:	Electric
Pull Rating (lbs):	15,000 lbs. (6803kg)
Volts:	12 V
Winch Fairlead Type:	Roller
Remote Included:	Yes
Remote:	Remote switch,12ft (3.7m)lead + Wireless
Free-Spooling Clutch:	Sliding Ring Gear
Brake:	Automatic In-The-Drum
Power Out:	Yes
Drive Gear:	3-Stage Differential Planetary
Winch Line Included:	Yes
Winch Line Type:	Cable
Winch Line Diameter (in):	1/2 in. (12.7mm)
Winch Line Material:	Steel
Winch Line Length (ft):	85 ft. (26m)
Weight:	117.000 lbs. (53.1kg)
Motor Horsepower:	6.0 hp
Gear Reduction Ratio:	265.2:1
Drum Diameter (in):	2.500 in. (63.5mm)
Drum Length (in):	8.800 in. (224mm)
Overall Dimensions (in):	558mm(L) x 203mm(W) x 304mm(H)
Winch Finish:	Black
Recommended Battery:	650CCA min.
Quantity:	Sold as a kit.

Speedmaster winches are the complete recovery system, built with the muscle and reliability to pull you through any situation. The Speedmaster 4wd winches emcompass all the best features you could want in a winch. Ranging from 2500lb - 15000lb, they can handle any situation you could get into. Every winch is finished with a black powder coat with stainless steel hardware, an aluminum cross bars to provide great looking, and long lifetime. They include a wired remote switch and a wireless remote control, waterproof box with the versatility to be mounted over the winch motor or winch cable, a four way roller fairlead, and forged hook.Electric winch with Permanent Magnet ModelCapcityPowerSteel cableSize (L X W X H)NW PCE553.1006 15000LB DC12V 12.7mm X 26m 558mm(L) X 203mm(W) X 304mm(H) 53.1KG Pull, Speed, Amperes, Volts (First Layer) Line Pull (lbs./ kg)Line Speed FPM(m/min)Motor (Amps) 022.0ft (6.8m) 80 3000 (1361) 11.5ft (3.5m) 170 6000 (2722) 9.8ft (3.0m) 210 9000 (3629) 8.2ft (2.5m) 250 12000 (4536) 6.8ft (2.1m) 300 15000 (5909) 5.6ft (1.7m) 360 Line Pull And Rope Capacity In Layer LayerRated Line Pull (lbs./kgs) Total Rope On Drum (ft/m )1 15000 (6804) 21 (6.4)2 12273 (5567) 46 (14.0)3 10385 (4711) 63.0 (19.
