| Brand: | Speedmaster |
| Part Number: | PCE290.1017 |

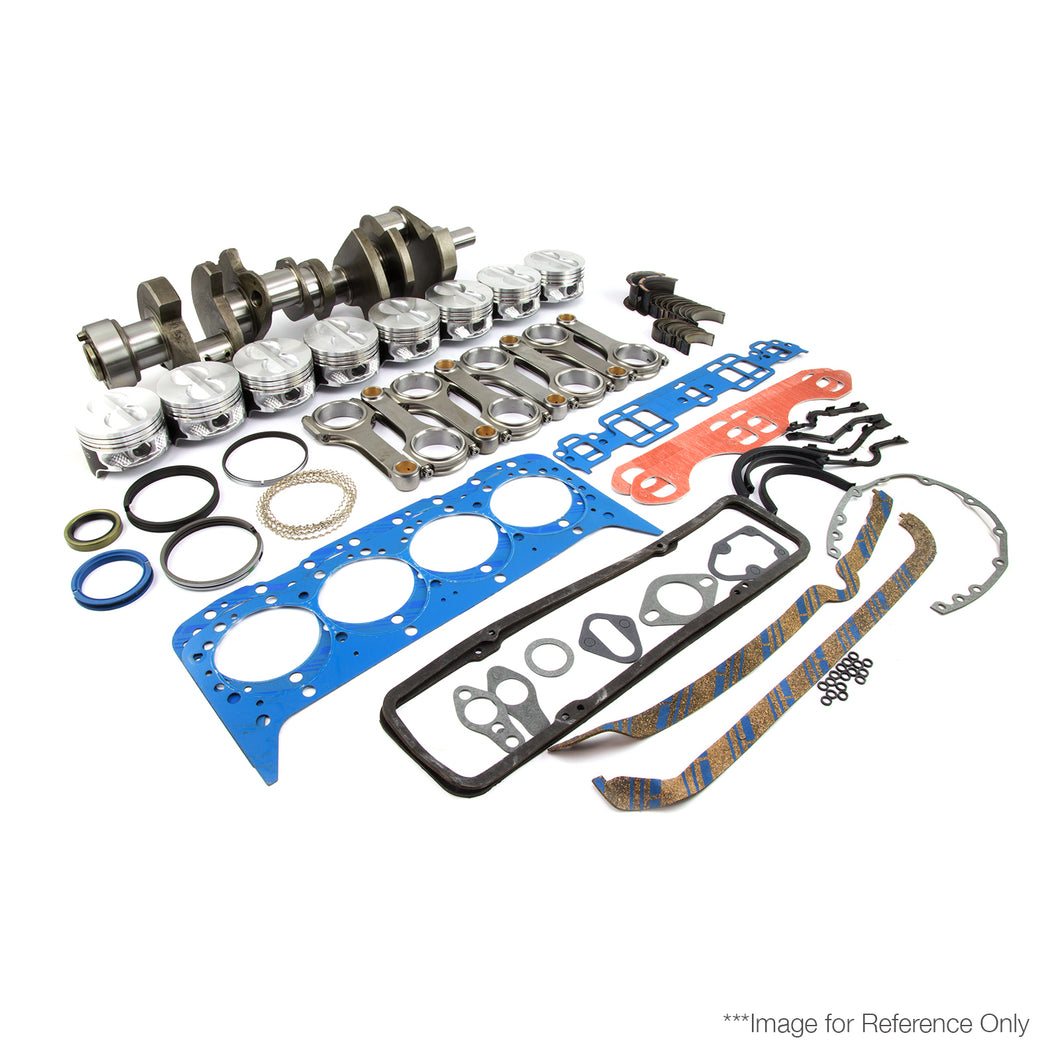

| Part Type: | Engine Rotating Kit |
| Â | Â |
| Actual Engine CID: | 434 |
| Bore (in): | 4.155 in. |
| Engine Stroke (in): | 4.000 in. |
| Balanced: | No |
| Pistons Included: | Yes |
| Piston Rings Included: | Yes |
| Piston and Ring Oversize (in): | 0.030 in. |
| Piston Material: | Forged aluminum |
| Piston Style: | Dish, with two valve reliefs |
| Piston Head Volume (cc): | -16.00cc |
| Wrist Pin Style: | Floating |
| Piston Ring Facing Material: | Plasma-moly |
| Crankshaft Included: | Yes |
| Crankshaft Material: | Forged 4340 Steel |
| Rear Main Seal Style: | 2-piece |
| Engine Balance: | Internal |
| Connecting Rods Included: | Yes |
| Connecting Rod Material: | 4340 Chromoly Steel |
| Connecting Rod (more...)Crankshaft PCE forged standard weight crankshafts are designed for street or race engines with substantially increased horsepower. PCE crankshafts are precision-ground, heat-treated, shot-peened, inspected, and micro-polished for superior tolerance control. PCE crankshafts are also nitride-hardened for superior wear resistance, have straight-shot and chamfered oil holes, and feature lightening holes in all rod throws. These crankshafts also have a large radius on all journals for improved strength and wear resistance. Connecting Rods PCE H-beam connecting rods are one of the strongest connecting rods available. PCE H-beam connecting rods are perfect for supercharged and nitrous applications. These rods incorporate a special doweled cap for specific cap-to-rod alignment and are profiled with extra clearance for stroker applications. PCE 'H' Beam Street / Strip connecting rods are manufactured from aircraft quality 4340 chromoly steel. The rods are x-rayed and ultrasonically tested with all surfaces shot peened and stress relieved. Pistons PCE Forged pistons are made from 4032 aluminum alloy for quieter operation and reduced piston to wall clearance. Up to 20% lighter than traditional forged pistons th(more... |
