| Brand: | Speedmaster |
| Part Number: | PCE276.1061.01 |

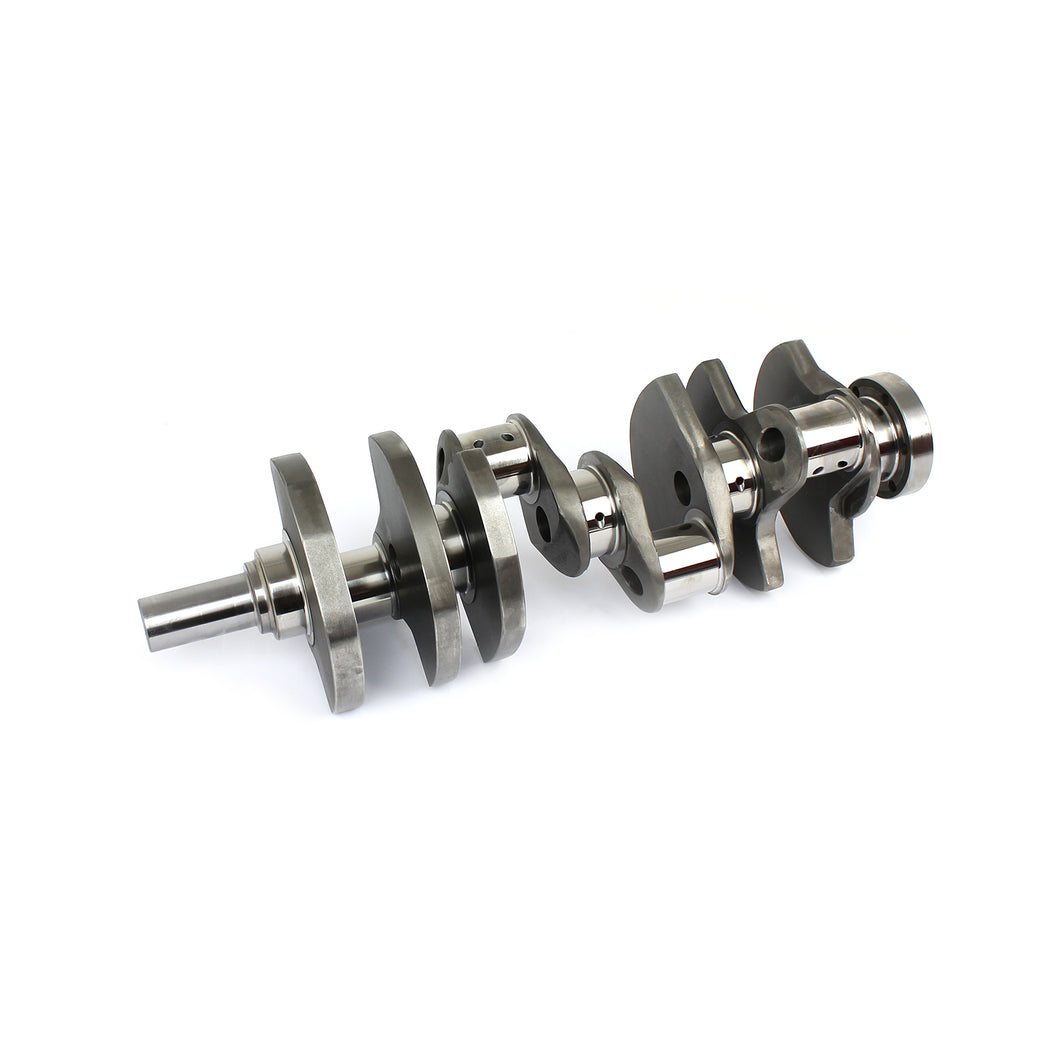

| Part Type: | Crankshaft |
| Product Line: | 4340 Forged Steel |
| Rear Main Seal Style: | 1-piece |
| Engine Stroke (in): | 4.100 in. |
| Crankshaft Material: | Forged 4340 Steel |
| Engine Balance: | Internal |
| Lightened: | No |
| Requires Narrow Bearings: | Yes (10/10) |
| Rod Bearings Included: | No |
| Main Bearings Included: | No |
| Rod Journal Diameter (in): | 2.100 in. |
| Main Journal Diameter (in): | LS Standard |
| Minimun Rod Length (in): | 6.098 in. |
| Balancer Bolt Thread Size: | Standard |
| Crankshaft Snout Style: | Standard |
| Quantity: | Sold individually. |
| Notes: | Check the bearing to crank radius clearance. Rod bearings may need to be chamfered or alternatively use narrow rod bearings. USA Machined to 10/10. |
| Tool: | Stroker Combinations |
