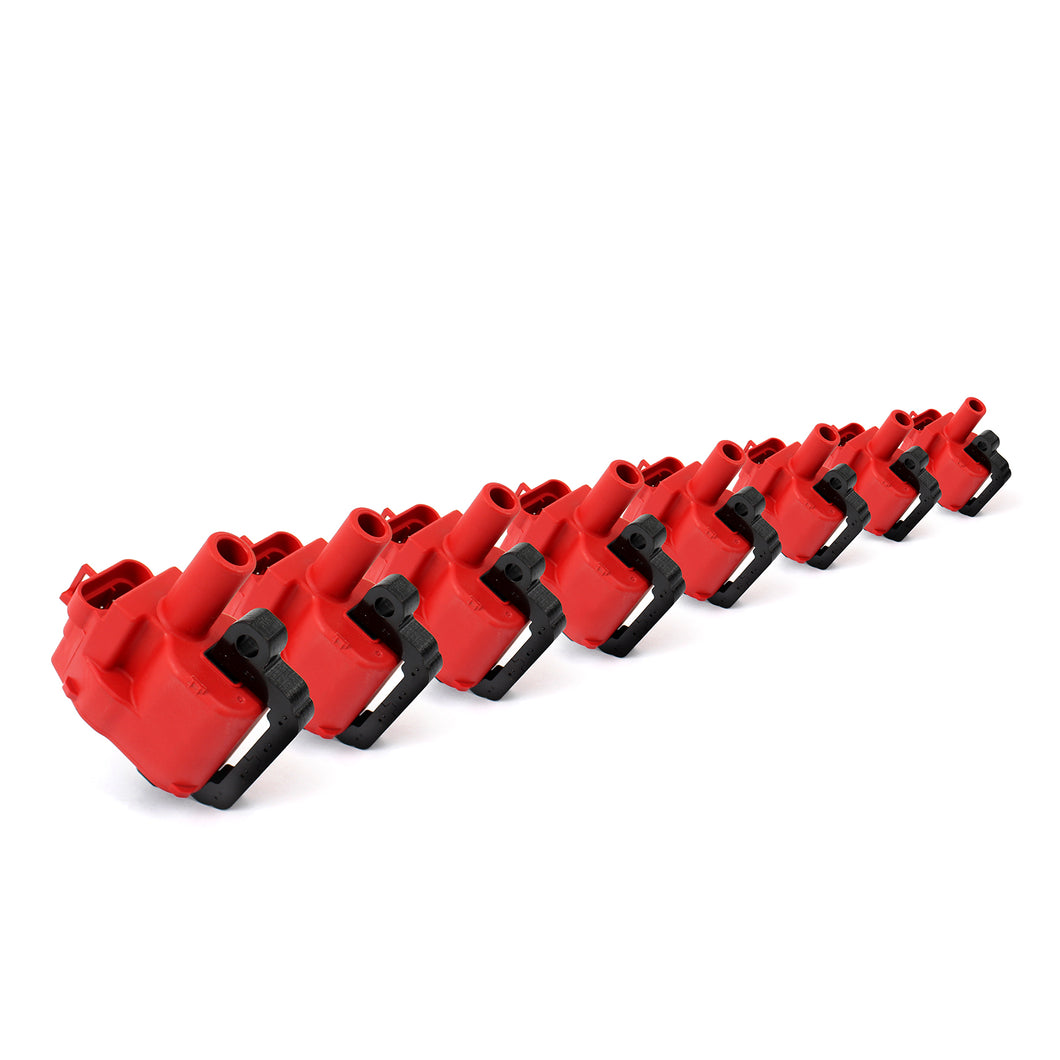

![Chevy Gm LS1 LS6 12V High Output E-Poxy Ignition Coil Red [Round D580] 8pcs](http://musclecarhq.com.au/cdn/shop/files/PCE382.1025_{width}x.jpg?v=1752223296)
![Chevy Gm LS1 LS6 12V High Output E-Poxy Ignition Coil Red [Round D580] 8pcs](http://musclecarhq.com.au/cdn/shop/files/PCE382.1025_530x@2x.jpg?v=1752223296)
| Brand: | Speedmaster |
| Part Number: | PCE382.1024.02 |
| Part Type: | Ignition Coil |
| Coil Wire Attachment: | Female/Socket |
| Coil Style: | Coil pack |
| Primary Resistance: | 0.730 ohms |
| Coil Internal Construction: | Epoxy |
| Coil Color: | Red |
| Maximum Voltage: | 40,000 V |
| Turns Ratio: | 56:1 |
| Secondary Resistance: | 3.7K ohms |
| Inductance: | 3.6 mH |
| Peak Current: | 124 mA |
| Spark Duration: | 1,110 uS |
| Mounting Bracket Included: | No |
| Coil Wire Included: | No |
| Ballast Resistor Included: | No |
| Coil Shape: |
