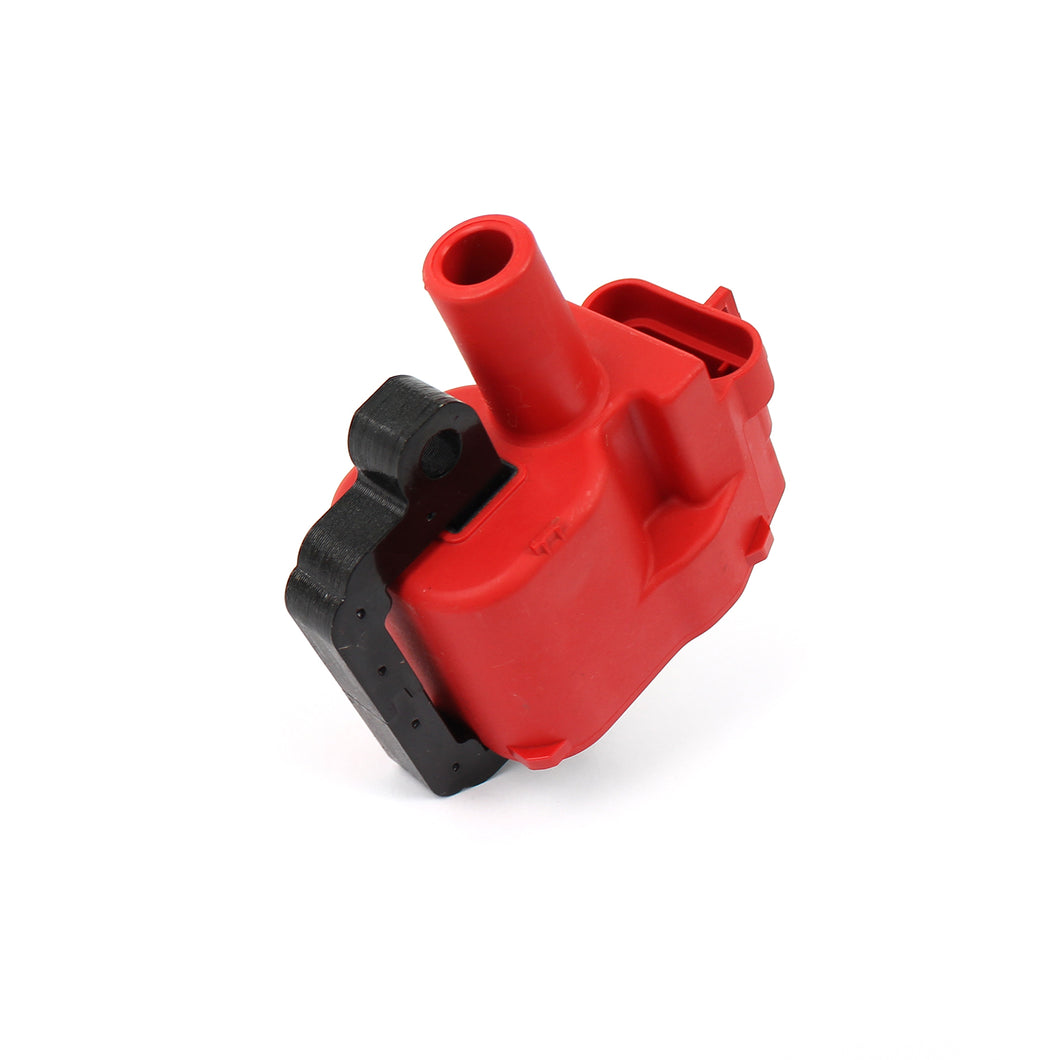

Chevy Gm LS1 LS6 12V High Output E-Poxy Ignition Coil Red [Round D580]

Brand:	Speedmaster
Part Number:	PCE382.1024.01
Part Type:	Ignition Coil
Coil Wire Attachment:	Female/Socket
Coil Style:	Coil pack
Primary Resistance:	0.730 ohms
Coil Internal Construction:	Epoxy
Coil Color:	Red
Maximum Voltage:	40,000 V
Turns Ratio:	56:1
Secondary Resistance:	3.7K ohms
Inductance:	3.6 mH
Peak Current:	124 mA
Spark Duration:	1,110 uS
Mounting Bracket Included:	No
Coil Wire Included:	No
Ballast Resistor Included:	No
Coil Shape:	Square
Quantity:	Sold individually.
Notes:	Fits LS1/LS6 engine models with spark plug wire and coil connector entering the same side of the coil.

Speedmaster Ignition's Multiple Spark Coils (MSC) will fit in place of the stock GM LS coils and connect directly to the factory connectors. Once installed, you'll have the power and performance of higher energy sparks, crowned with PCE's multiple spark discharge. Increased spark energy and voltage, along with multiple spark capabilities, help improve the combustion process of the fuel mixture to create an efficient burn.
