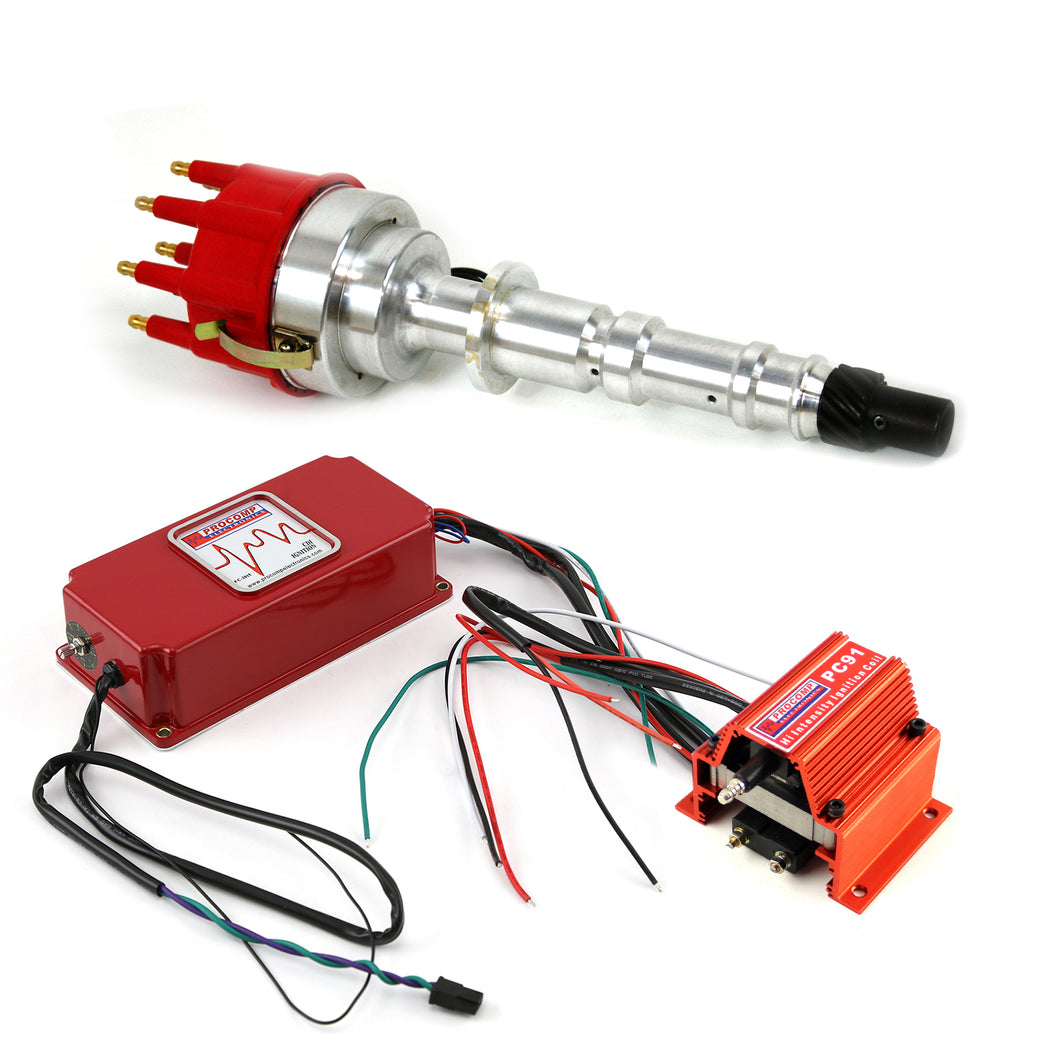

Chevy 348 409 Pro Billet Aluminum Distributor 6AL CDI Ignition & Coil Kit

Brand:	Speedmaster
Part Number:	PCE385.1108
Part Type:	Ignition System Combo Kit
Advance Type:	Mechanical
Ignition Box Included:	Yes
Rev Limiter:	Yes - 2
Ignition Coil Included:	Yes
Coil Style:	Remote
Distributor Included:	Yes
Wiring Harness Included:	No
Spark Plug Wires Included:	No
Spark Plugs Included:	No
Quantity:	Sold as a kit.
Notes:	This ignition system is designed for carbureted, non-computer controlled applications only.

Upgrade your ignition to the power and performance of a Speedmaster multi-spark digital capacitive discharge ignition Kit. Included is a Billet distributor, E-Core ignition coil and Multi-Spark digital capacitive discharge ignition. Speedmaster billet distributors are designed for the enthusiast that is serious about performance but needs the small cap size due to space considerations when installed. They are precision CNC machined from billet 6061-T6 aluminum to exacting tolerances. The “spark plug” type terminals offer secure wire attachment. Under the brass terminals of the cap and rotor is an extremely accurate magnetic pickup that never requires adjustment along with an easy to adjust mechanical advance mechanism. The heavy duty 1/2” steel shaft is guided in a long sintered bushing as well as a sealed ball bearing at the top to precisely locate the reluctor. This combination yields stable timing and spark delivery at any RPM. Speedmaster E-Core technology coil produces up to 70% more spark energy than stock coils with outstanding reliability. This unit is recommended for street, strip, circle track and drag racing. Internally the coil also has large gauge wire windings for maximum spark current and voltage with better heat dissipation at high rpm. High voltage arcing is minimized through screw on connectors and a high tension tower. Ideal for use with capacitive discharge (CD) ignition systems and all of Speedmaster range of High Output Ignitions. Speedmaster CD Ignition produces multiple sparks up to at least 3,000 rpm. This series of sparks (each spark is at full voltage), whether there are two or six, will always last for 20° of crankshaft rotation. This powerful series will improve the starting ability, idle quality & throttle response. If you have a multiple carb set up that is a little off at idle or an engine that burns a little oil, the spark series will help prevent the cylinders loading up. At higher rpm there isn’t enough time to fire the plug more than once during the combustion stroke, so there is only a single full power spark regardless if you’re at idle or racing down a straight away at 10,000 rpm. The high quality transformer is hand wound and instantly steps up the supply voltage from the battery then stores this high voltage in a large capacitor. When the ignition is triggered the capacitor releases all of this voltage to the coil so the primary voltage is at full power at any rpm. These high powered sparks ensure complete combustion of the fuel mixture at racing rpm which in turn produces more power! Speedmaster CD Ignition Soft Touch circuitry produces an accurate and smooth limit without loading up the cylinders or excessive back fires. Even if your car is a mild street machine, a rev limiter can save you from expensive engine damage due to driveline failure or a missed shift.
