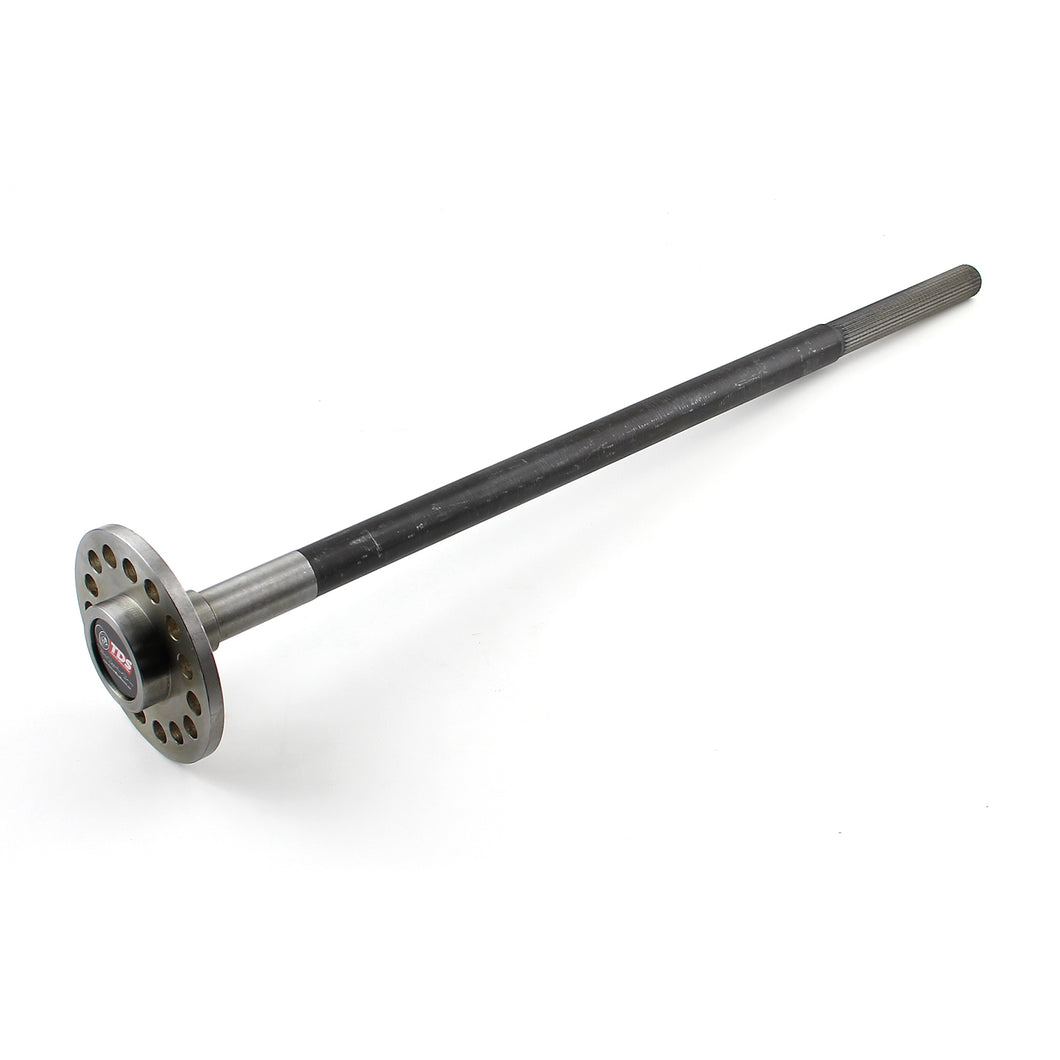

Ford 9" 35 Spline 30.000 in. Cut-to-Fit Axle Shaft - F-100 Large Bearing

Brand:	Speedmaster
Part Number:	PCE201.1008
Part Type:	Axle Shaft, Custom Built
Inner Axle Splines:	35
Axle Type:	Flanged
Axle Material:	4140 steel
Axle Length (in):	30.000 in.
Wheel Stud Type:	Press-in
Wheel Stud Pattern:	Dual 5 x 4.50 in. and 5 x 4.75 in.
Spool Included:	No
Wheel Studs Included:	No
Bearings Included:	No
Seals Included:	No
Quantity:	Sold individually.
Notes:	Cut to length design 10 in. of spline. Axle Sleeve (PCE420.1008) required to set axle back space.

Speedmaster axles are manufactured using cutting-edge technology and techniques. These forged steel axles are designed to fit a range of applications and are non-tapered with hardened bearing seats. These axles are available in any length up to 34 inches, and they may be reduced to fit if you decide to narrow your rear-end later on.  SizeImperialMetricA: 2.811 in.71.40mmB: 1.874 in.47.6mmC: 30.000 in.762mmD: 1.562 in.39.7mmE: 5.905 in.150mmX: Axle Sleeve to offset bearing to your specific application.Note: When used in Ford 9" Differential our recommendation is to use 1x 34" long axle and 1x 30" long axle.
