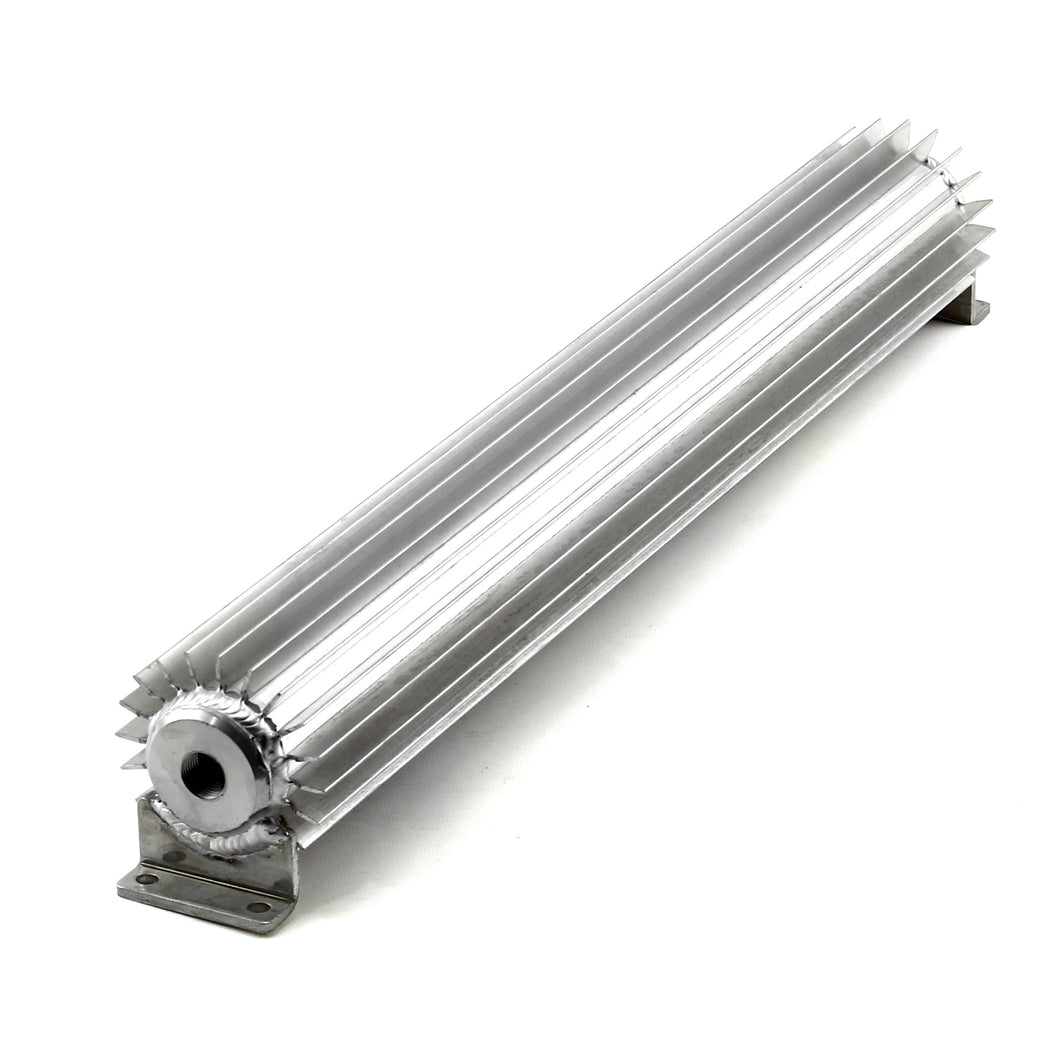

20" Silver Anodized Single Pass Transmission Oil Cooler With Fittings

Brand:	Speedmaster
Part Number:	PCE186.1010
Part Type:	Fluid Cooler
Cooler Construction:	Heat sink
Overall Height (in):	3.000 in.
Overall Width (in):	20.000 in.
Overall Thickness (in):	3.250 in.
Cooler Material:	Aluminum
Cooler Finish:	Silver anodized
Inlet Size:	3/8 in. NPT
Inlet Attachment:	Female threads
Outlet Size:	3/8 in. NPT
Outlet Attachment:	Female threads
Quantity:	Sold individually.
Notes:	Includes 3/8 in. hose barb fittings.

The internal and external cooling fins in these new Speedmaster heat sink transmission coolers provide maximum cooling efficiency without relying on direct airflow. Their compact diameter means that they can be mounted in a variety of locations, such as on the frame rail next to the transmission, directly under the radiator, under the floorboards, etc. Their rugged aluminum extrusion features welded ends for long service life, in even the toughest environments. These coolers are offered in several lengths with 3/8 in. inlets.
