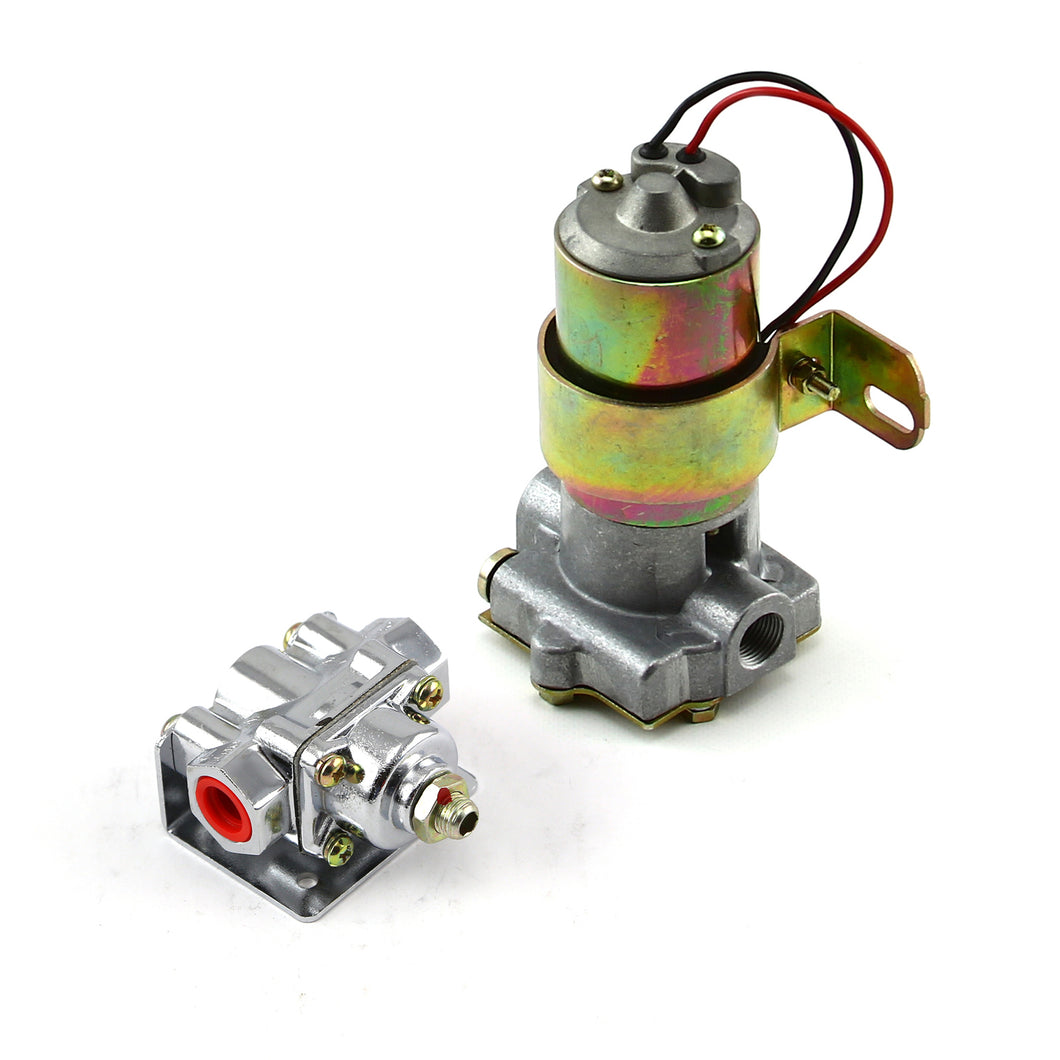

140 Gph @ 14 PSI Universal Electric Fuel Pump Regulator Kit

Brand:	Speedmaster
Part Number:	PCE145.1017
Part Type:	Fuel Pump, Electric External
Fuel Pump
Free Flow Rate:	140 gph
Maximum Pressure (psi):	14 psi
Inlet Quantity:	One
Inlet Attachment:	Female threads
Inlet Size:	3/8 in. NPT
Outlet Quantity:	One
Outlet Attachment:	Female threads
Outlet Size:	3/8 in. NPT
Quantity:	Sold individually.
Notes:	This pump flows 120 gph at 9 psi.
Fuel Pressure Regulator
Pressure Range (psi):	4 - 9
Regulator Style:	Non-return
Regulator Location:	Inline
Boost/Vacuum Reference Port:	No
Gauge Port:	No
Mounting Bracket Included:	Yes
Fittings Included:	No
Rebuildable:	Yes
Inlet Quantity:	One
Inlet Attachment:	Female threads
Inlet Size:	3/8 in. NPT
Outlet Quantity:	Two
Outlet Attachment:	Female threads
Outlet Size:	3/8 in. NPT
Regulator Material:	Aluminum
Regulator Finish:	Polished Chrome
Quantity:	Sold individually.

Speedmaster electric fuel pumps feature an improved design for street and strip applications, a new lower housing casting for enhanced fuel flow. These pumps have a 140 gph flow rate, only draw 4 amps, and have a maximum pressure of 14 psi with an externally accessible pressure relief valve. They weigh only 3 lbs., and include a mounting bracket. These Speedmaster electric fuel pump is compatible with alcohol or methanol fuels. The needle and seat assemblies that are installed in Speedmaster carburetors can sufficiently control fuel pressure up to about 8 psi. If the fuel pump is putting out more than 8 psi, a regulator should be used to keep the fuel pressure within safe limits and avoid the possibility of flooding. Speedmaster manufactures a number of regulators for most any need.
